4D Excitateur 2 – Technologie KEPO

Système d'excitation 4D Seat Automotive

KEPO 4D Exciter II achieves precise synchronization between tactile vibration and musical beats through its upgraded rhythm-recognition algorithm, delivering a perfect fusion of auditory and tactile senses.

Key Advantages：

Les fonctions:Music Rhythm, Safety Alert, Movie & Gaming Feedback, Massage, et plus.
Safety Haptic Feedback Channel for ADAS
High-G acceleration, Near-zero aftershock, Pure performance
Less parts, Smaller size, Easier install

Exciter II features an independent vibration array that syncs with Dolby Atmos and ambient lighting for 5D immersion; it also uses multi-point vibration and diverse waveforms to deliver safety alerts, including but not limited to driver fatigue and blind spots.

Produit

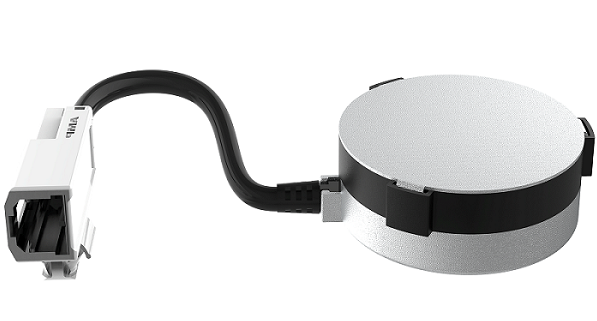

4D Excitateur

Impédance ··························································8Ω±10 %(1Vrms à 1 kHz)
Fréquence de résonance ··················Bes≥68±10%Hz
Accélération(à 4Vrms) ··································1.2Grms@600g load in middle at FO

Inpt Power ·································································Nominal 1,0 W/Max. 2.0O

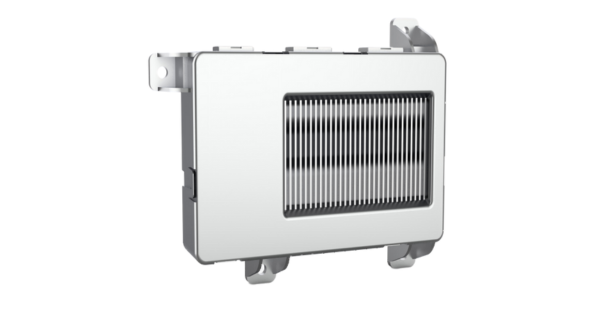

Control Box

Tension de travail ··········································· ····9V-16V
Courant de travail ·······················································≤8A
Courant de repos ················································≤0.1mA

Load Impedance ··········································· ····4Oh & 8Oh (matched to the exciter)
Number of Channels ·························· ···················≥18 channels
