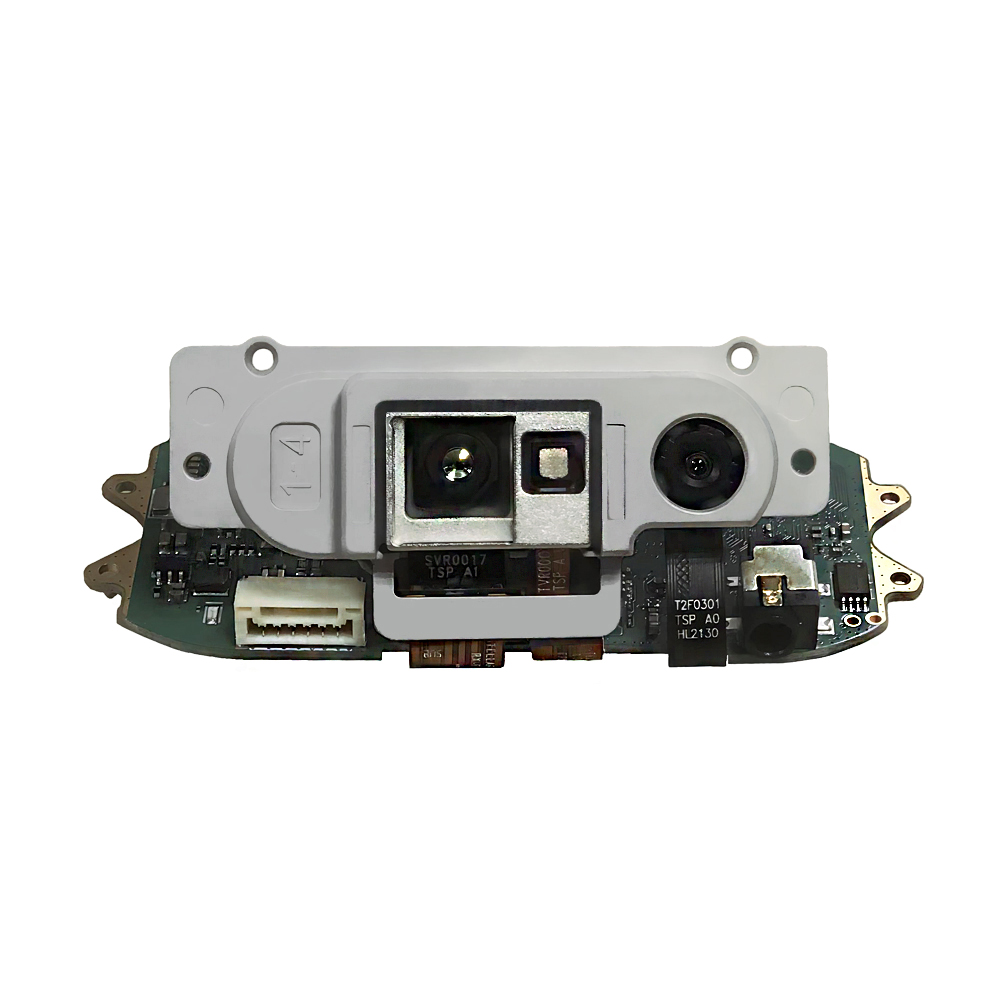

KEPO 3D Camera-iToF-02 1000×1000

iToF 3D Camera

ITOF technology is of low computational complexity and quick response. It will not be affected by external light and can adapt to work under dark and strong light environments. iToF technology will deeply protect users’ privacy and security.

Technical Advantages:
· High flexibility evaluation kit, necessary system customization development can be carried out for specific applications.
· Supports modulation frequency up to 100MHz, can give full play to the performance of VCSEL, and achieve higher distance accuracy.
· Support frame rate up to 135FPS to detect and track fast-moving objects.
· Low power consumption (only 230mw at 30FPS)
· The power supply scheme with only three voltages (2.7V, 1.8V, 1.2V) to simplify the system design and reduce the power supply unit cost.
· Carried with multiple system-level interfaces, including CSI-2 serial data output, MIPI D-PHY and I2C.
Item Content
Measuring Distance 0.2m-6m (Customizable)
Resolution 640*480
FPS TYP 30fps (Support 60fps)
Precision Error<1cm
FOV H.67°x V51°(Customizable)
Ambient Light Resistance 120klux
DATA Interface GMSL (MAX96711)
Cold Start <300ms
Working Voltage 9-16v
Operating Current <300mA
Peak Current <1.5A
Power Consumption <3W
Working Temperature -40~85 ℃
Storage Temperature -40~95 ℃

Product Diagram

System Frame of KEPO On-board Wireless Charging

In-Car Application:
Posture control & gesture control
Face recognition
Driver distraction monitoring
Hand steering wheel monitoring
Monitoring of forgotten children in the rear row
Pressure adjustment of airbag and safety belt

Off-Car Application:
Keyless Door Opening—Feature Recognition
Parking & Door Opening—3D Environment Perception
Automatic Driving—Blind Zone Monitoring
Vehicle close environment monitoring
