Haptic
KEPO Electronics customizes Z-direction linear motor for push-buttons, displays and touch screens with low power consumption, low noise, stable F0, high peak value and wide vibration frequency.
• Peak Value Above Market Level
• Vibration Sense Adjustment
• Customized in Different Dimensions
Products
![KEPO-Haptic-Push Button](https://www.kepotech.com/wp-content/uploads/2023/01/Haptic-Push-Button-Comp-1024x1024.jpg)

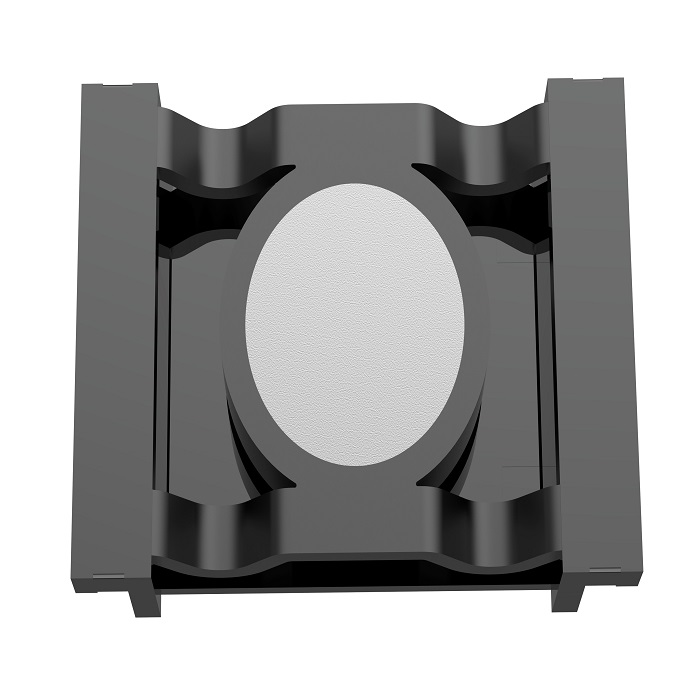

Push Button(KEPO-2213B)
Impedance ·············································································· 8Ω±10%(1Vrms at 1kHz)
Acceleration(at 2.83Vrms)·········≥2.0 Grms @100g load in middle at 180Hz
≥2.0 Grms @100g load in side at 180Hz
Input Power ··········································································· Rated 1.0W / Max. 2.0W
Leak sound(at 2.83Vrms) ························································ ≤35dB@ 100g load
![Haptic-Display&Touch Screen](https://www.kepotech.com/wp-content/uploads/2023/01/Haptic-DisplayTouch-Screen-Comp-1024x1024.jpg)

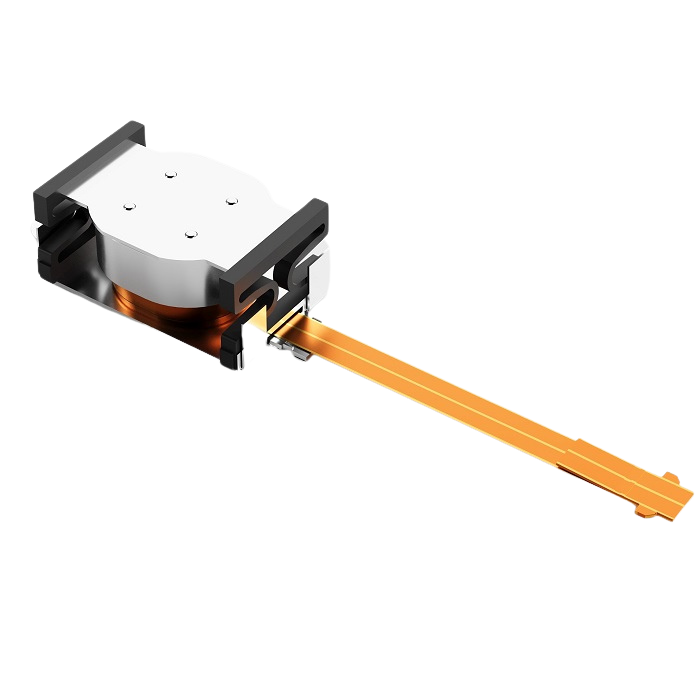

Display & Touch Screen(KEPO-3222HP1-Q00034)
Impedance ············································································· 8Ω±10%(1Vrms at 1kHz)
Acceleration(at 2.83Vrms) ·········≥1.4Grms@100g load in middle at 140Hz
≥ 1.4Grms@100g load in side at 140Hz
Input Power ············································································· Rated 0.5W/Max. 1.0W
Leak sound(at 2.83Vrms) ························································· ≤35dB@ 100g loa
Applications
In-car Button Touch Screen
Home Appliance Touch Screen
This is the heading
Entertainment Consumer Electronics
Why Choose KEPO
1. Simulation
![KEPO-Haptic-Magnetic Flux Density](https://www.kepotech.com/wp-content/uploads/2023/02/磁通密度(三倍速).gif)
Magnetic Flux Density
![KEPO-Haptic-Stress Distribution](https://www.kepotech.com/wp-content/uploads/2023/02/振动器-应力.gif)
Stress Distribution
![触感振动-声压级 KEPO-Haptic-Sound Pressure Level](https://www.kepotech.com/wp-content/uploads/elementor/thumbs/触感振动-声压级-q1sfr97hokq9p6j9v40ksrwviz52ytktojx2qtitra.png)

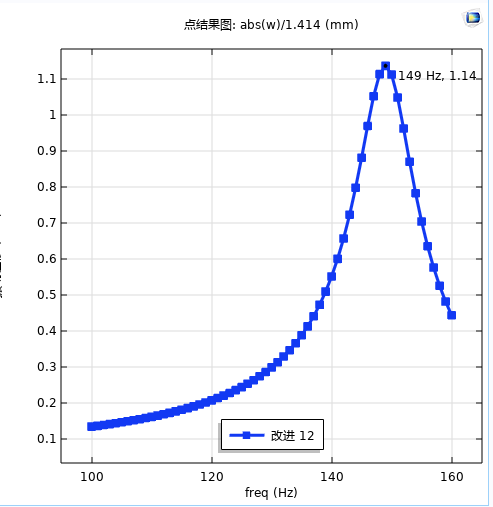

Sound Pressure Level
2. Structural Analysis
![KEPO-Haptic-Displacement Distribution-1](https://www.kepotech.com/wp-content/uploads/2023/02/触感震动-位移1.gif)
Displacement Distribution-1
![KEPO-Haptic-Displacement Distribution-2](https://www.kepotech.com/wp-content/uploads/2023/02/触感震动-位移2-1024x597.gif)
Displacement Distribution-2
![KEPO-Haptic-Displacement Distribution-3](https://www.kepotech.com/wp-content/uploads/2023/02/触感震动-位移3.gif)
Displacement Distribution-3
3. Experimental Ability
![KEPO Quality Testing System](https://www.kepotech.com/wp-content/uploads/2023/02/DSCF1284-1024x683.jpg)
R & D Equipment
![KEPO R & D Machine - 1.5](https://www.kepotech.com/wp-content/uploads/2023/02/研发3-1-1.5-1024x683.jpg)
Quality Test
![KEPO R & D Group](https://www.kepotech.com/wp-content/uploads/2023/02/研发1-1024x683.jpg)
