Haptic-Display&Touch Screen

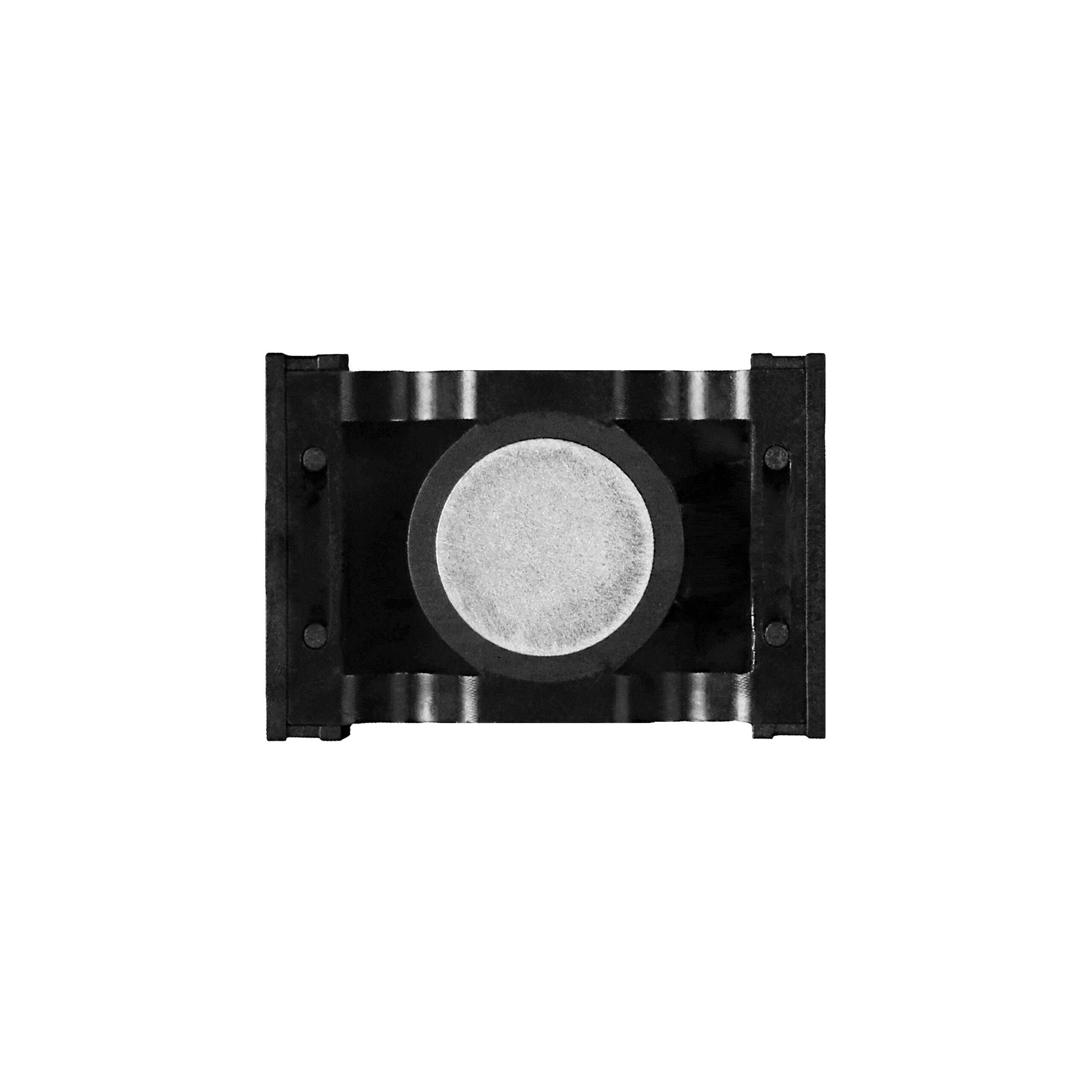

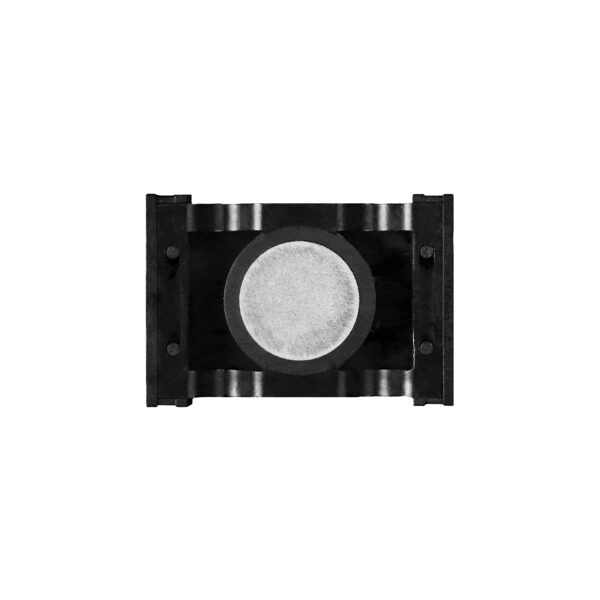

Haptic-Display & Touch Screen-KEPO-3222HP1-Q00044

Kepo customizes Z -direction linear motors for push-buttons and touchscreens in all dimensions. The products are of strong F0 stability, high-temperature resistance (150℃), large acceleration, high peak value (3.20g), good reliability, and wide vibration frequency.

· Strong F0 stability
· High-temperature resistance (150℃)
· Large acceleration
· High peak value (3.20g)
· Good reliability
· Wide vibration frequency
Item Content
Impedance 8Ω±10%(1Vrms at 1kHz)
Acceleration(at 2.83Vrms) ≥1.4 Grms @100g load in middle at 140Hz; ≥ 1.4 Grms @100g load in side at 140Hz
Input Power Rated 0.5W / Max. 1.0W
Polarity When supplied plus D.C. voltage to (+) terminal, the cone diaphragm must move to forward.
Leak sound(at 2.83Vrms) ≤35dB@ 100g load
Operating Temperature -40~+85℃ without loss of function
Store Temperature -40~+85℃ without loss of function
Out-Diameter 32×22 mm
Height 7 mm
Weight 6.5g±1g

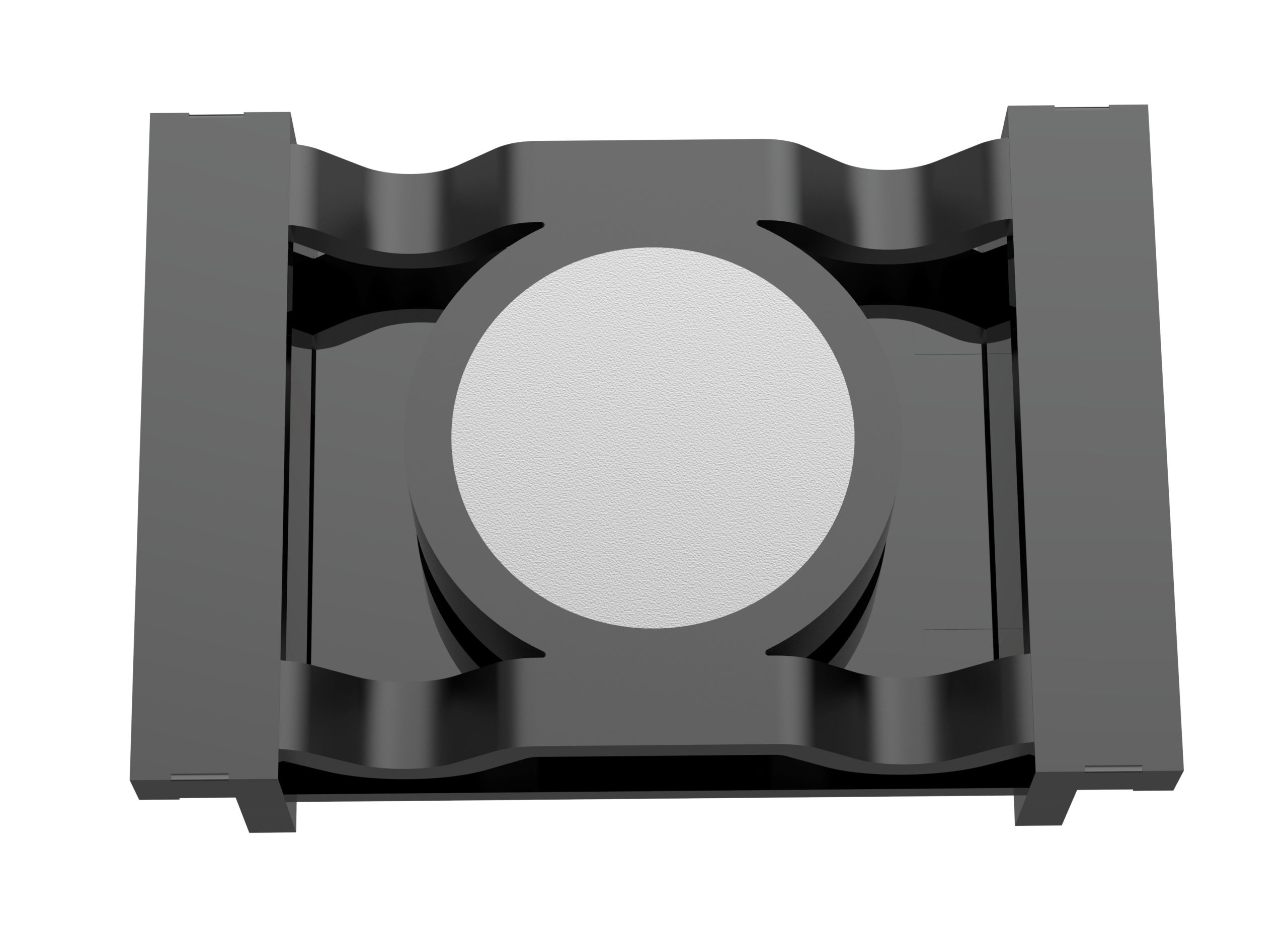

Product Diagram

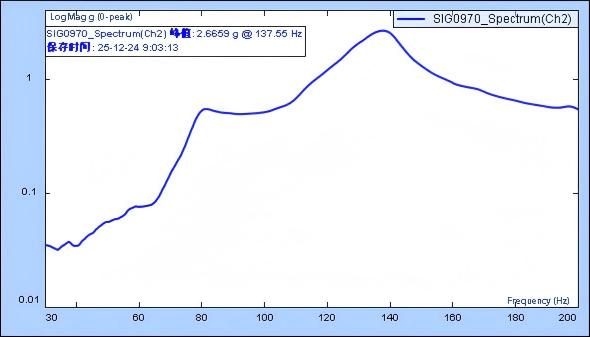

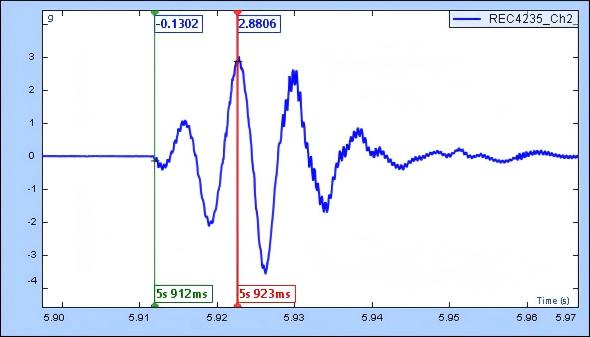

Acceleration Curve of KEPO Z-Direction Linear Motors
