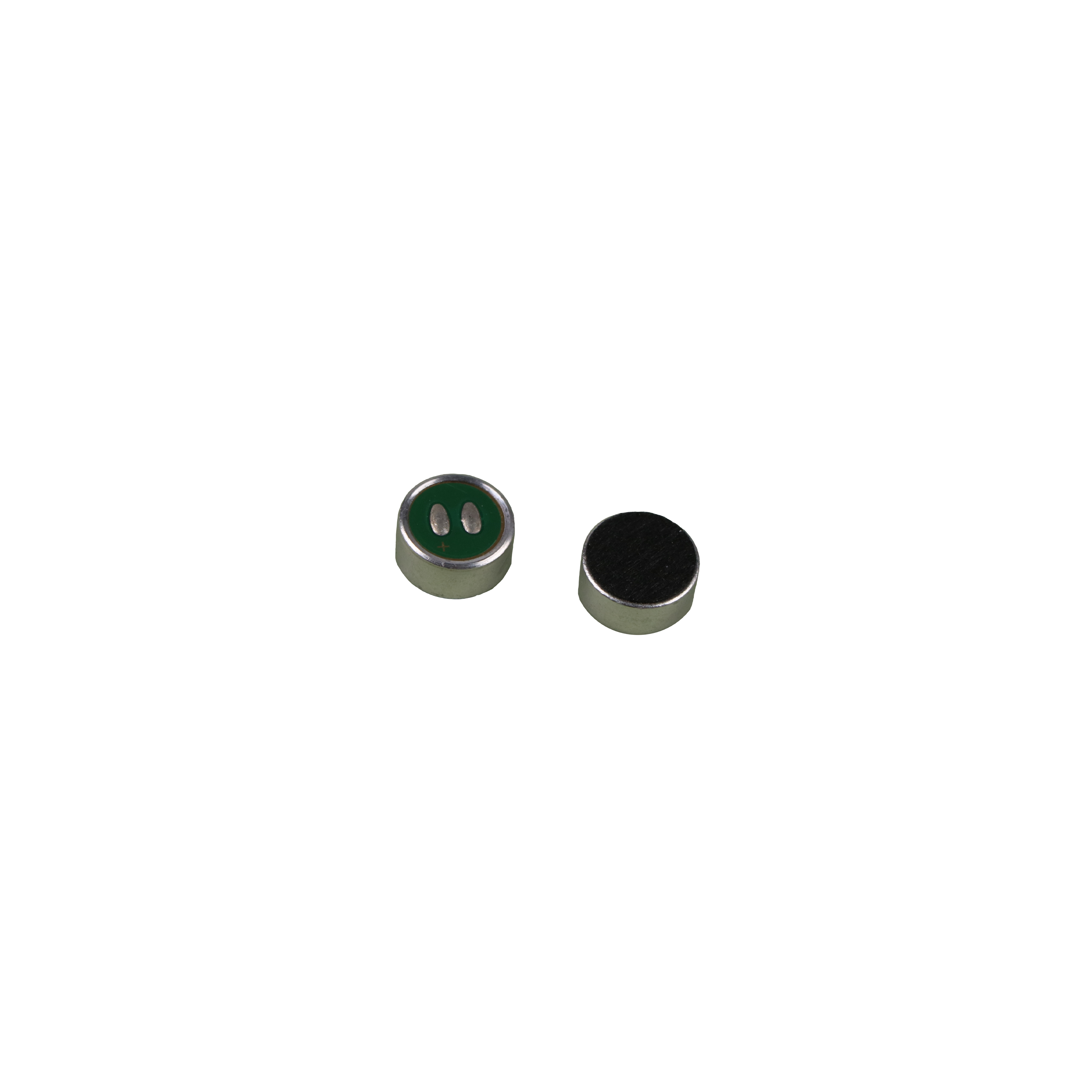

Condenser Microphone KPCM 9745 30dB 007

Condenser Microphone-KPCM-9745-30dB-007

Specification
Directivity: Omnidirectional
Sensitivity: -30dB±3, 0dB=1V/1pa,1KHz
Standard Operation Voltage: 2.0 VDC
Output Impedance: 2.2 KΩ, f=1KHz, 1pa
Operating Voltage: 1~5 VDC
Sensitivity Reduction: -3dB, f=1KHz, 1pa; Vs = 2.0-1.5 VDC
Max. Current Consumption: 0.5mA, Vs=2V, RL=2.2KΩ
Frequency: 20~16000 Hz
Signal to Noise Ration: 70dBA, f=1 KHz, SPL=1Pa (A-Weighted)
Max. Sound Pressure Level: 100dB, f=1Kz, THD<5%

Product Diagram

Condenser Microphone KPCM 9745 30dB 007 Frequency Response

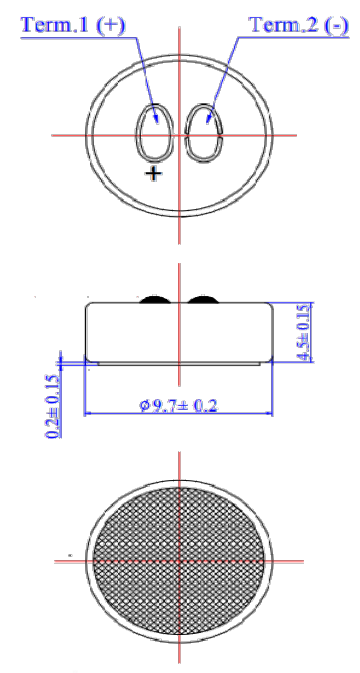

Condenser Microphone KPCM 9745 30dB 007 Product Dimension
