MEMS Microphone KPCM 0410LR5H 38DB A

MEMS Microphone-KPCM-0410LR5H-38DB-A

Specification
Supply Voltage: 1.5~3.6 V
Supply Current: 120~160 μA
Sensitivity: -38±1 dBV/Pa, 94 dB SPL @ 1 kHz
Signal to Noise Ratio: 63 dB(A), 94 dB SPL @ 1 kHz, A-weighted
Total Harmonic Distortion: 0.15~0.2%, 94 dB SPL @ 1kHz, S = 0.15, Rload >3kΩ
Acoustic Over load Point: 116~118 dB SPL, 10% THD @ 1kHz, S = 118, Vdd = 1.5V, Rload > 3 kΩ
DC Output: 0.73 V, Vdd = 1.5 V
Output lmpedance: 400Ω, @ 1 kHz
Directivity: Omnidirectional

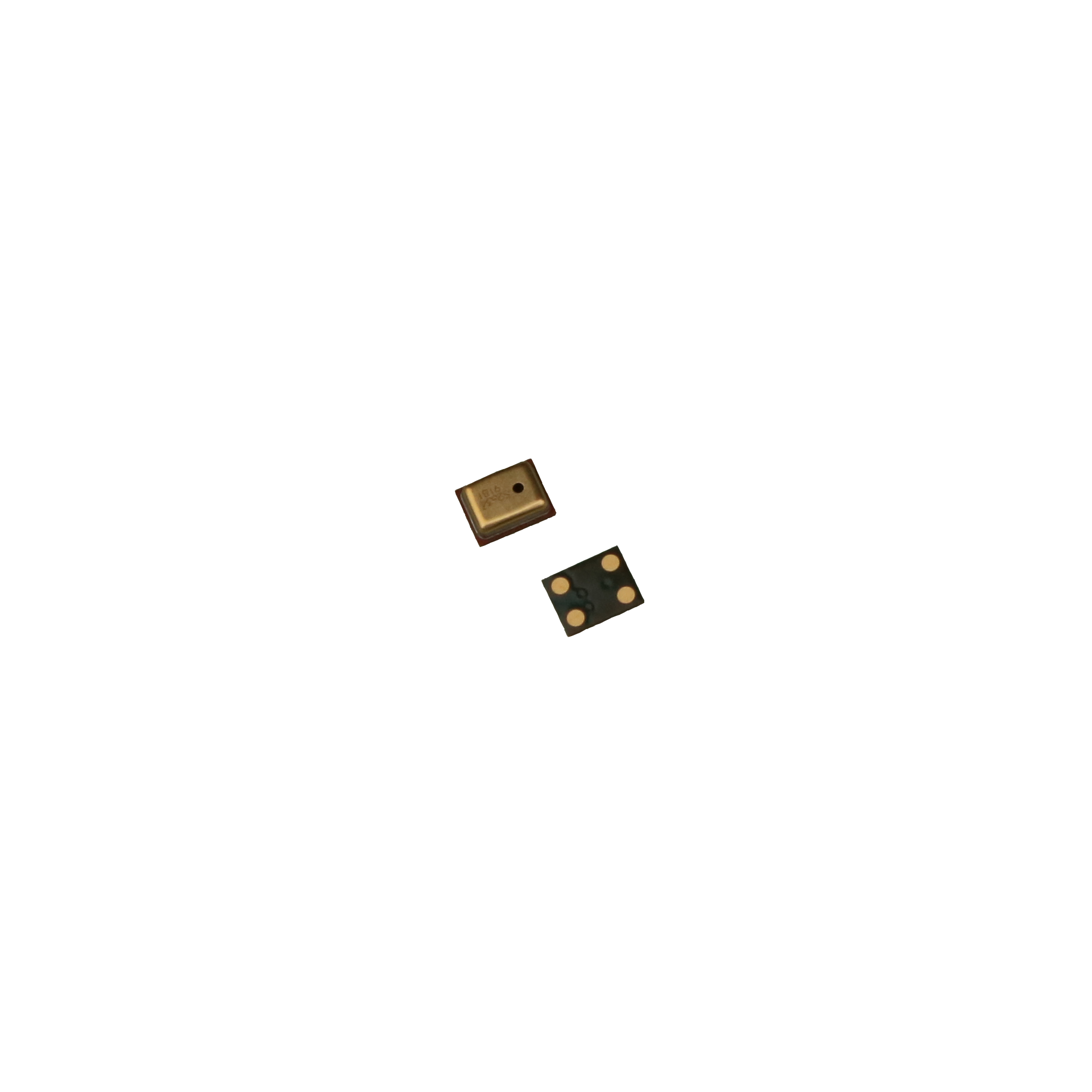

Product Diagram

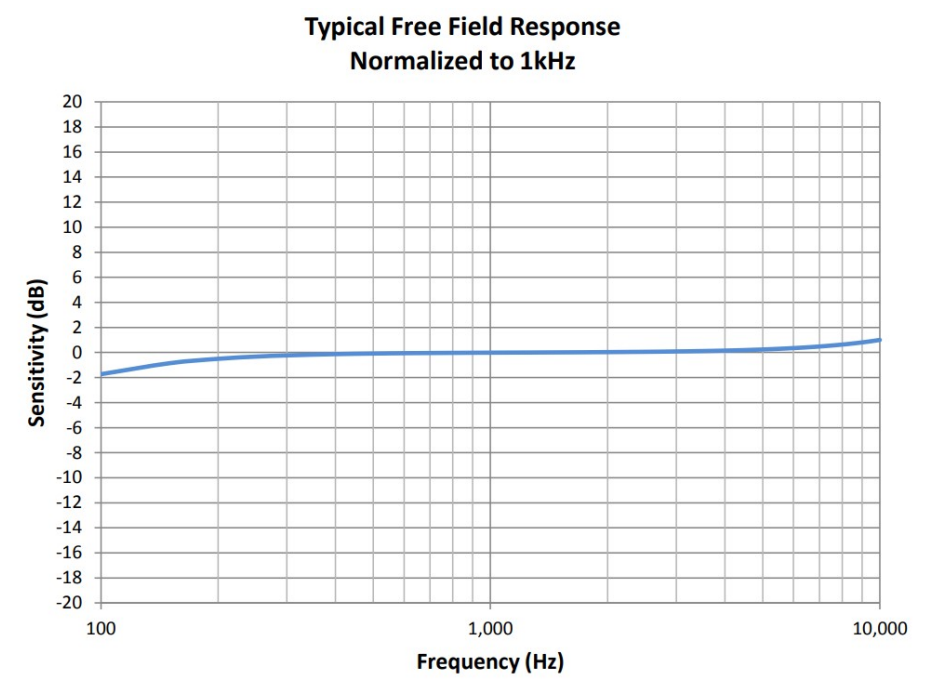

MEMS Microphone KPCM 0410LR5H 38DB A Response Curve

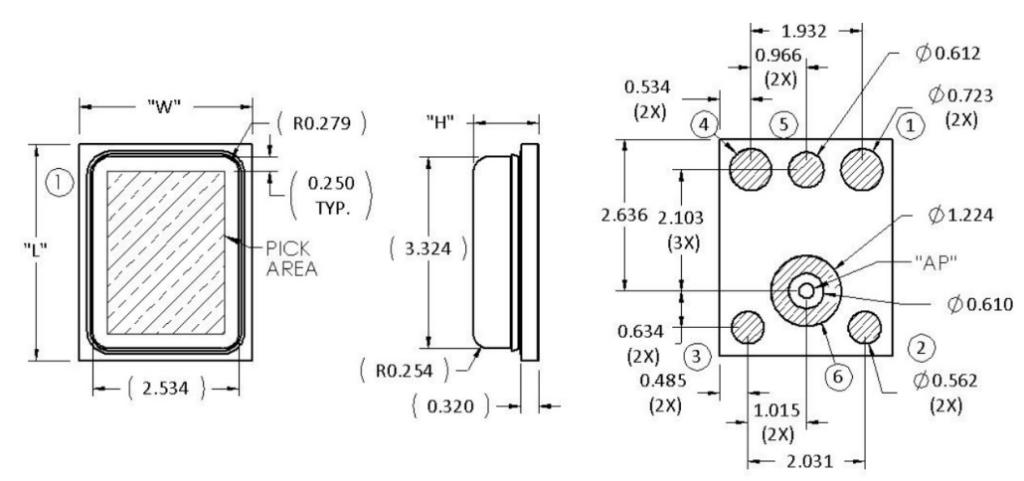

MEMS Microphone KPCM 0410LR5H 38DB A Product Dimension
